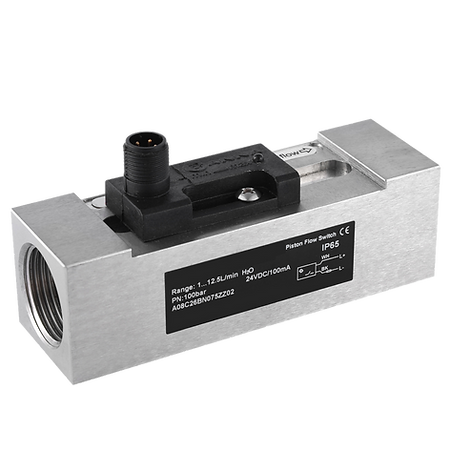

Piston flow switch - F10
Cost effective
Stable performance
Good for small pipes.
Applicable to water, oil, or gas.
Aluminum or Stainless Steel
Introduction
F10 equips with a piston which responds to the flow rate in a pipe. With increasing or decreasing of the flow rate, the movement of the piston actuates a hermetically sealed reed switch, and triggers the specified action.
Features
Applicable to liquid or gas
Cost efficient
Aluminum or stainless steel housing material
High reliability
Specifications
Pipe size
1/4''...1'' (DN8...DN25)
Repeatability
5%
Display
LED for switch state
Pressure rating
Aluminum housing:
725 psi (50 bar)
Stainless steel housing:
1450 psi (100 bar)
Medium temperature
Max. 194°F (90°C)
Protection class
IP65
Set point range
See datasheet for details
Applications
Coolant monitor

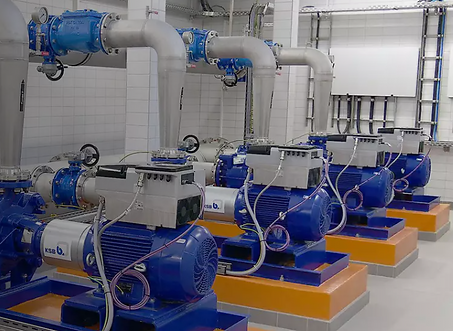

Pump run-dry protection
Machine tools
Hydraulic and lubrication system
Compressed air
Air conditioning industry
