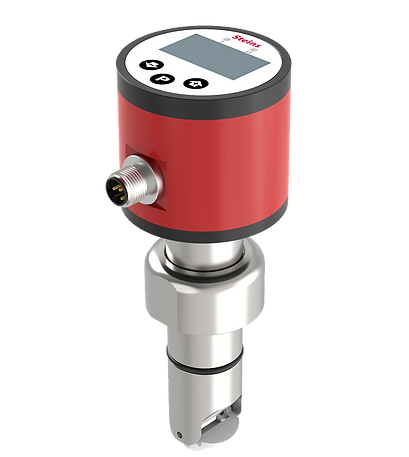

Paddle Flow Meter PF100T
Dual Output - Flow and Temperature
Output: Flow and Temperature
Cost effective
Compact design
Easy to install and maintain
Introduction
Media flowing through pipe causes the spinning of the paddle wheel, and the spin of paddle wheel is proportional to the speed of the medium flowing through. The sensor on the top of the paddle wheel detects the past of each paddle and produce a pulse, the transmitter then processes the pulse signal to obtain of flow rate.
Features
Cost efficiency
Easy to install and maintain
Flow and Temperature output
One unit works for different size pipes
Specifications
Applicable pipe size
3/4''...6'' (DN20...DN150)
Applicable medium
Liquids
Accuracy
2% of full span
Output
One 4...20mA for flow
One 4...20mA for temperature
Two switch output (flow or temperature programmable)
Pressure rating
435 psi (30bar)
Materials
Transmitter housing - aluminum
Body - stainless steel
Paddle wheel - PVDF

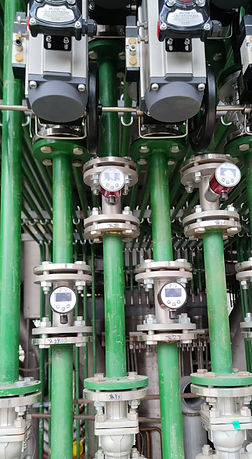

Applications
HAVC
Data center cooling
Water / water treatment
Chemical processing
Irrigation
