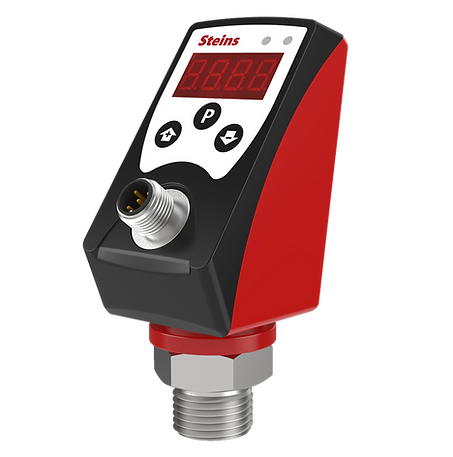

Pressure Transmitter -
LP100 - Local Display
330° rotatable display
4...20mA + 2 switching output
Compact design
Various wetted part materials
Integrated / Remote type
Introduction
Equipped with display, LP100 is convenient to use and view the measured value. Rotatable display, compact design makes it good for limited mount space. Analog and switching output at the same time.
Features
330° rotatable display
High repeatability
4…20mA + 2 switching output
Integrated / remote transmitter
Various wetted part
Specifications
Measuring range
See datasheet for details
Output
2 switch output
4...20mA
4...20mA + 1 switch output
4...20mA + 2 switch output
Display
4-digit LED
Medium temperature
-13...185°F / -25…85°C
Wiring protection
Reverse polarity
Overvoltage
Short-circuit
Housing material
Zinc Alley
Electrical connection
M12×1 4-pin plug
M12×1 5-pin plug

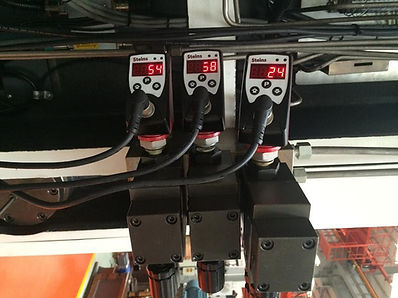

Applications
Applicable to liquids or gas
Metal processing
Hydraulic and lubrication system
Leaking monitor
Pressure control system
......
