We design and manufacture a wide portfolio of standard and custom-tailored Positive Displacement Flow Meters for subsea uses. These meters are designed to withstand the harsh conditions of the subsea environment, including high pressure, low temperatures, and corrosive fluids.

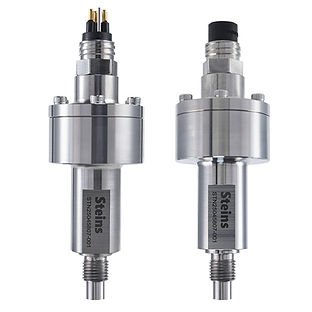

Subsea Positive Displacement Flow Meter GSF100 Sereis
Introduction
Our Subsea PD Flow Meters are available in a wide variety of flow ranges and outputs, as well as a variety of materials for highest corrosion resistance.
With full line of testing and calibration equipments, we assure all our PD flow meters are with high accuracy, high reliability and high resolution to meet or beyond the highest standard of our customers.
Features
Field proven Solid and reliable design
Manufactured to the highest quality
Accuracy better than 0.5%
Working pressure up to 1035 bar
Output: Single-pulse, Dual-pulse
Single-analog, Dual-analog (4...20mA)
Customization available
Applications
ROV Skids
ROV Workover Control Systems (RWOCS)
Blowout Preventer (BOP)
Offshore Chemical & Methanol Injection
Subsea Control Systems
Valve actuation
......
Specifications
Max. working pressure:
Accuracy:
Repeatability;
Materials:
Output:
Process connection:
Electrical connection:
Wiring protection:
15000 psi (1035 bar)
0.5% of reading
0.1% of reading
Body: 316 / 316L / duplex stainless steel (others available on request)
Rotor: 316 / 316L / duplex stainless steel (others available on request)
Sealing: FPM / NBR / PTFE (others available on request)
Bearings: Hybrid ceramic / stainless steel ball bearing
Pulse, Dual-pulse, 4…20mA
Autoclave (NPT, G thread or others available on request)
Burton, Seacon, Glenair, Subconn connectors
Short-circuit / Reverse polarity
Test and Calibration
All GSF100 Subsea Positive Displacement Flow Meters are individually calibrated and are traceable to national standards.
We provide you with a test certificate for each meter showing the number of pulses per lite, which is used to set the instrumentation.
Customization
Our subsea flow meters are highly customizable to match your specific needs:
Parts material
Process connection
Electrical connection
Signal output and
Housing.
