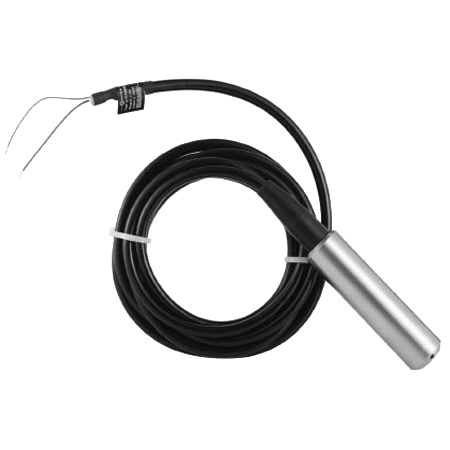

Economy Submersible
Level Transmitter - HSL100
For level measurement in tank, vessel
High stability
High reliability
Protection class IP68
Cost efficiency
Unaffected by conductivity, viscosity, dust, foam, vapor etc.

Introduction
Based the principle that hydrostatic pressure increases with the liquid depth, HSL100 uses a submersible pressure sensor to measure the static pressure of the liquid column above the sensor, which is proportional to the liquid level, allowing for accurate determination of the liquid height in a tank or vessel.
Features
Unaffected by conductivity, viscosity, dust, foam, vapor etc.
High reliability
Cost efficiency
Easy to install and use
High stability
Specifications
Measuring range
Up to 72.5 psi / 5 bar
(50m / 164 ft water column)
Power supply
24 VDC
Medium temperature
14…122°F / -10…50°C
Material
Cable:
PUR
PTFE
Housing:
Stainless steel 316L
PTFE
Output
4…20mA
Protection class
IP68
Accuracy
0.5%
0.2%
Wiring protection
Reverse polarity
Overvoltage
Short-circuit
Applications
Overfilling monitoring

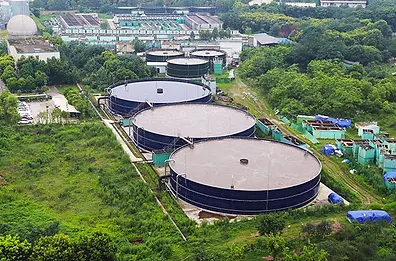

Water treatment
Drainage system
Chemical processing
Oil or vessel
......
