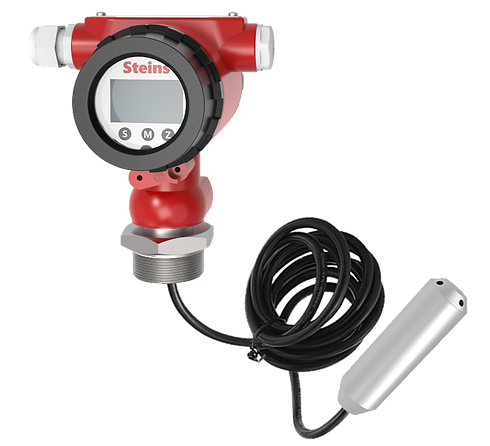

Submersible Level Transmitter
HSL200 - Local Display
Easy to use
Cost efficiency
High reliability
Protection class IP68.
Operating unaffected by foam, dust, vapor etc.
Introduction
Based the principle that hydrostatic pressure increases with the liquid depth, HSL200 uses a submersible pressure sensor to measure the static pressure of the liquid column above the sensor, which is proportional to the liquid level, allowing for accurate determination of the liquid height in a tank or vessel.
Features
Unaffected by conductivity, viscosity, dust, foam, vapor etc.
High reliability
Cost efficiency
Easy to install and use
High stability
Specifications
Measuring range
Up to 5 bar / 72.5 psi
(50m / 164 ft water column)
Power supply
24 VDC
Medium temperature
-22…176°F / -30…80°C
Output
4…20mA
1...5V
Protection class
Sensor: IP68
Accuracy
0.5%
0.2%
Material
Transmitter housing:
Aluminum
Sensor:
Stainless steel
PTFE
Rope:
PVC
PTFE
Applications
Overfilling monitoring
Water treatment
Drainage system
Chemical processing
Oil or vessel
......
